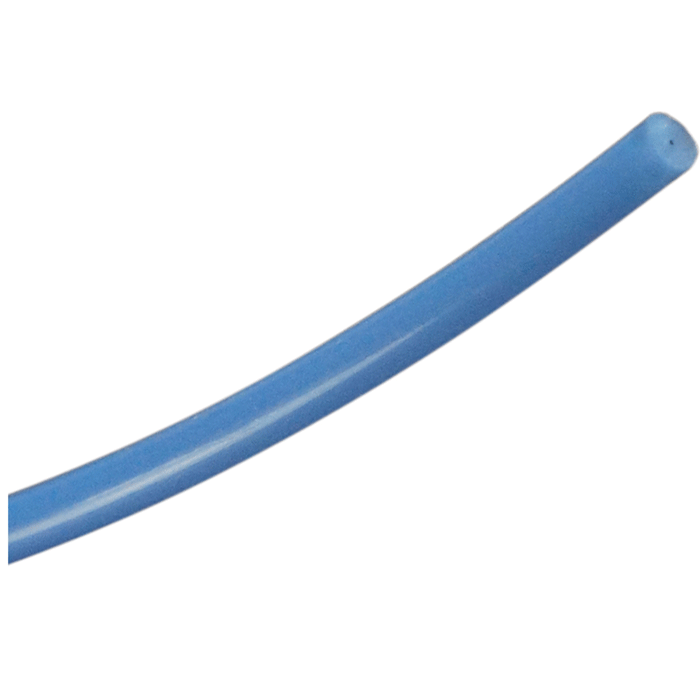

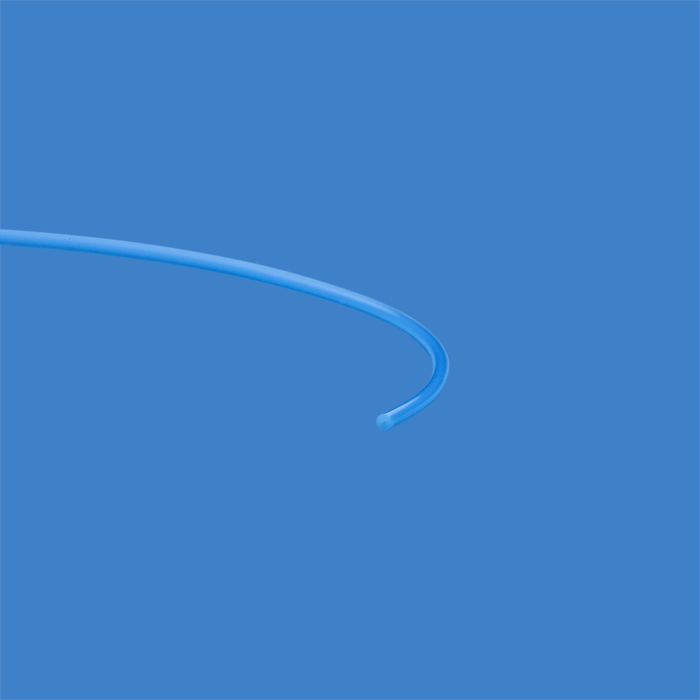

Tubing, PTFE, 0.010 inch (0.25 mm) ID, 1/16th inch (1.6 mm) OD, low pressure, blue, 10 meter roll, ARE-Applied Research brand. 1 EA.
Additional Info:
47240-10-10M ARE‑Applied Research PTFE Tubing is a high‑purity, low‑pressure fluid transfer solution engineered for HPLC, UHPLC, LC‑MS, and general laboratory applications, providing enhanced flow capacity and extended length for flexible system design, along with blue color coding for organized fluid line identification.
Manufactured from virgin PTFE resin, this tubing contains no additives or plasticizers (other than trace color‑coding particles), ensuring low extractables and compatibility with sensitive analytical workflows.
Precision Dimensions – Optimized for Higher Flow
Inner Diameter (ID): 0.010" (0.25 mm)
Outer Diameter (OD): 1/16" (1.6 mm)
Wall Thickness: 0.675 mm
Tolerance (ID & OD): ± 0.10 mm
✅ Larger ID provides higher flow capacity and reduced resistance vs. 0.007" tubing
Color‑Coded Blue Tubing – Improved System Organization
Blue color identification
Simplifies:
Multi‑solvent system routing
Setup and installation
Maintenance and troubleshooting
✅ Ideal for complex systems requiring clear fluid path identification
Low‑Pressure Chromatography Performance
Designed for low‑pressure fluid paths, including:
Pre‑pump mobile phase delivery
Post‑detector waste lines
General laboratory solvent transfer
Pressure Rating: 800 psi (55.2 bar)
✅ Supports stable and consistent solvent flow over longer runs
Virgin PTFE Construction – High Purity & Inertness
Manufactured from 100% virgin PTFE
No additives (except trace color coding particles)
Chemically inert and non‑reactive
✅ Minimizes contamination risk in LC‑MS and trace‑level analyses
Broad Chemical & Thermal Resistance
Resistant to:
Organic solvents
Acids and bases
Aqueous mobile phases
Maximum Temperature: 260 °C
✅ Suitable for demanding and long‑duration lab applications
Micro‑Porous Structure – Application Consideration
PTFE tubing contains micropores allowing slight gas exchange
Important for:
Degassed solvents
Oxygen‑sensitive workflows
✅ Consider alternative materials when gas impermeability is critical
Flexible & Durable Design
Flexible for long‑distance routing
Durable for repeated use
Maintains visual traceability of flow paths despite color tint
✅ Supports efficient installation and ongoing system maintenance
Regulatory Compliance
Compliant with:
RoHS EU Directive 2011/65/EU
Amendment (EU) 2015/863
✅ Meets global safety and environmental standards
Available Length Options
✅ Select the length that fits your application:
10 meter roll (this item)
✅ Custom cut lengths available through Customer Service
Typical Applications
HPLC mobile phase delivery (pre‑pump)
Extended solvent waste lines
Color‑coded multi‑line systems
Low‑pressure fluid transfer
OEM and instrument integration
Important Usage Notes
Not intended for high‑pressure pump head connections
Consider permeability when using degassed or oxygen‑sensitive solvents
Use proper fittings for secure, leak‑free connections
